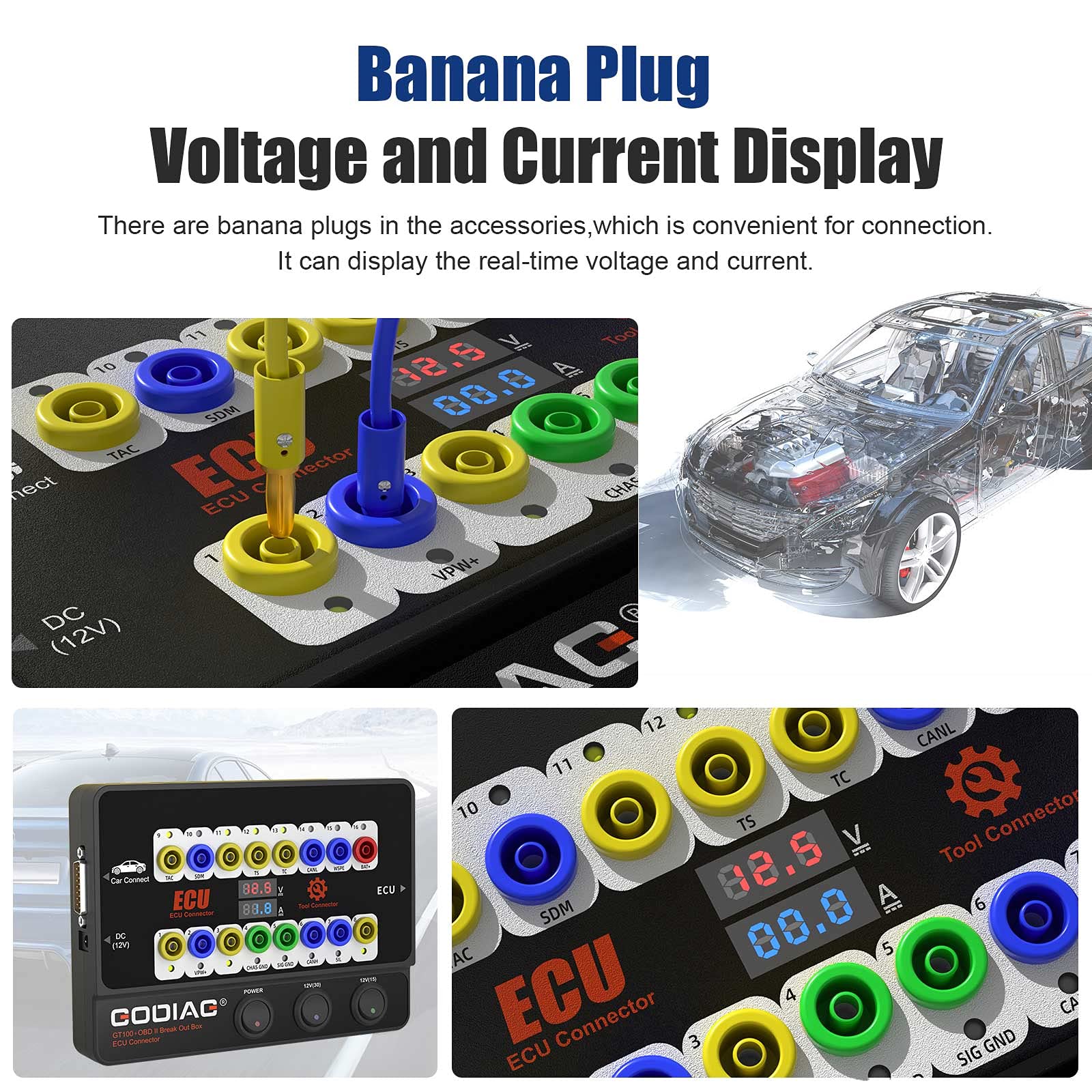

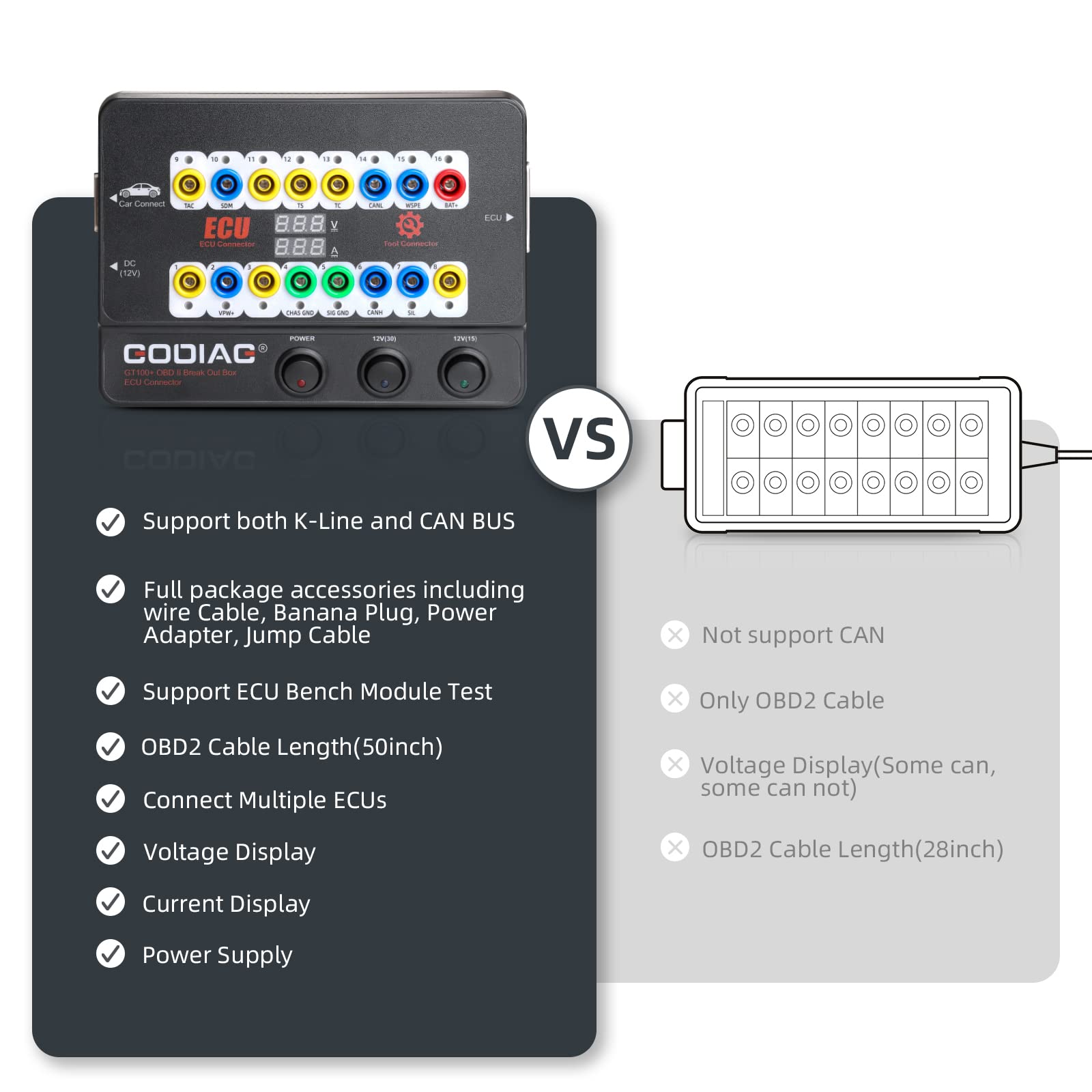

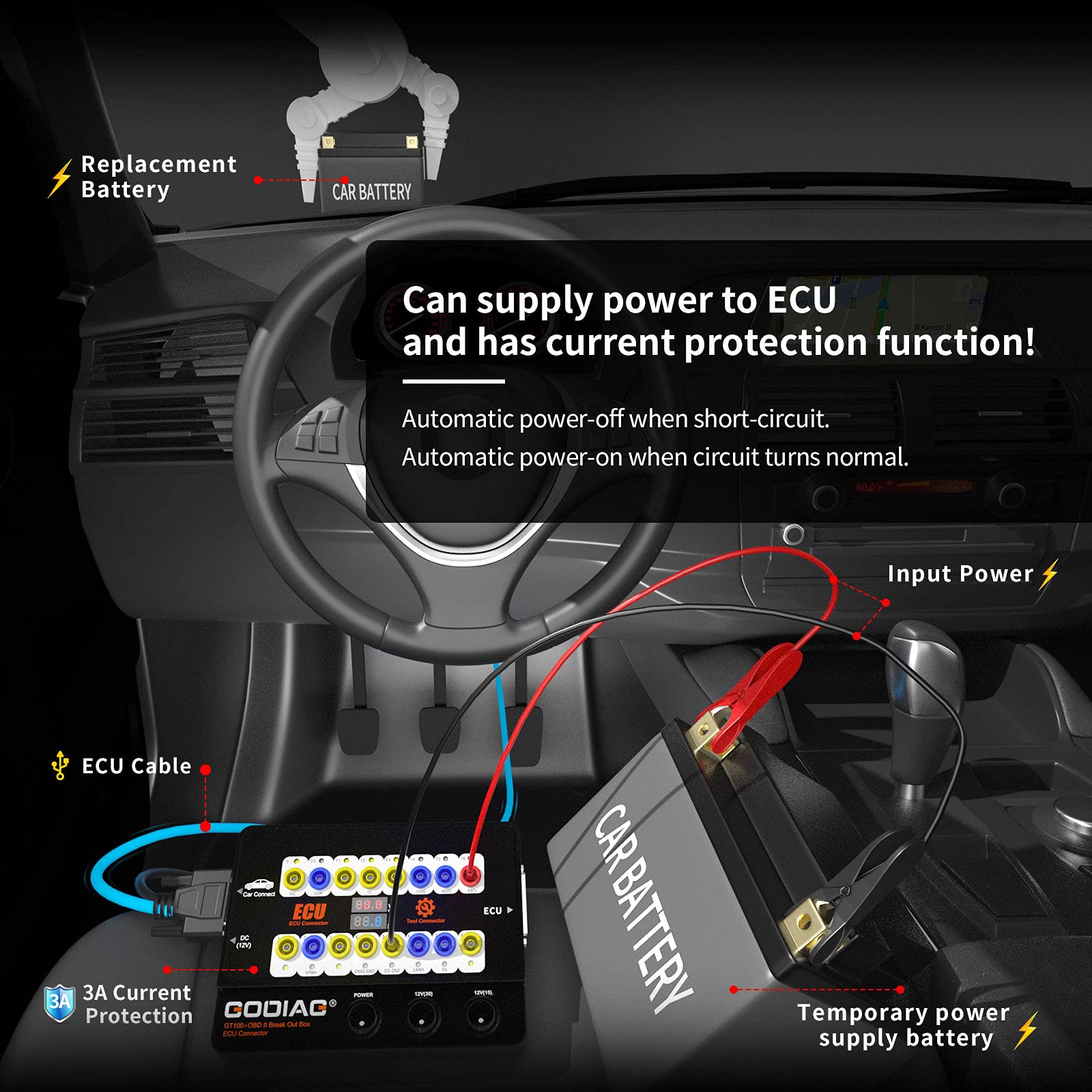

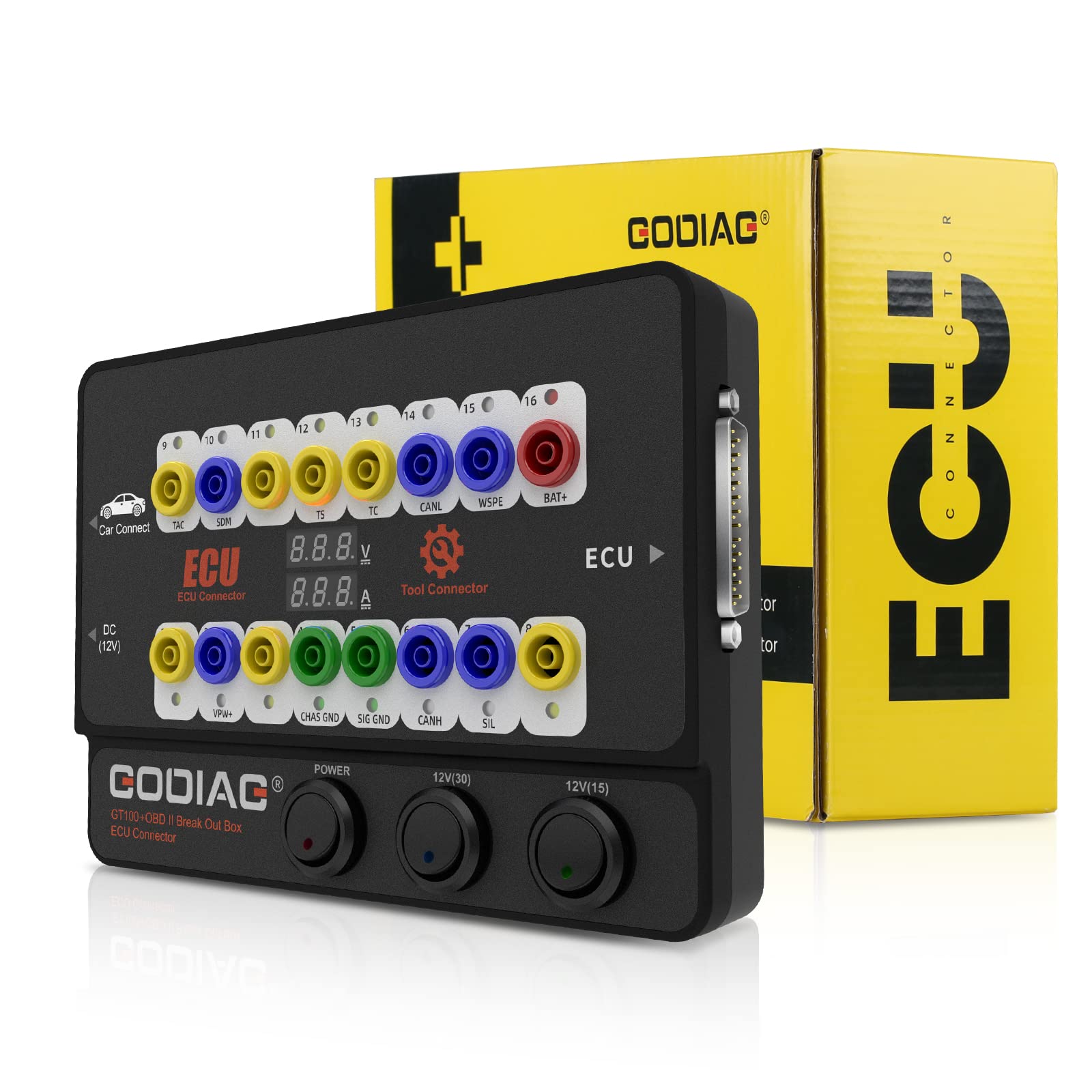

Godiag GT100+ OBDII Breakout Box ECU Bench Porgramming GODIAG GT100+ OBDII Breakout Box is a latest testing platform for OBDII protocol communication detection and ECU maintenance / diagnosis / programming / coding. Different from GT100 OBDII Breakout Box , this new version OBDII Breakout Box support CAN BUS protocol and add Current Display. Display Voltage and Current Function: GT100+ OBD2 Breakout Box connect with ECU module via banana connector or DB25 connector, can directly shows your current data. You can easily judge whether your cable has connect correctly or whether the ECU module is in good condition.Newly Added CAN BUS And K-LINE Protocol: GT100+ OBD2 Breakout Box port 1,9,3,11,12,13,8 those are not standard obd2 protocol port, it will shows CAN BUS and K-LINE protocol while GT100 OBDII Breakout Box only shows K-LINE, PWM VPW+ and KWP2000+ protocol.Help Activated the dashboard or IMMO module for VW,Porsche,MIT and Toyota: For VW, Porsche or MIT or Toyota all key lost, you can use GT100+ OBDII Breakout Box to activate dashboard or immo module before you use other tools like Autel IM608 to do all key lost.ECU Connection or Multiple Vehicle ECU Module Connecting: Conecting the single or multiple ECU control modules at the same time, GT100+ OBDII Breakout Box is good helper for programming and diagnosing.Banana Plug Extension Connection: Extend the car's OBDII 16pin interface to tell you whether the OBDII interface connection is good or not, which is convenient for the test of OBDII interface voltage waveform.Convert Obd1 Diagnostic Interface To The Standard Obd2: GT100+ OBDII Breakout Box Use the connector to convert the OBD1 interface into obd2 interface according to the diagnostic interface communication protocol. The Extension Cables: The space of the diagnostic interface location is too narrow to connect to the diagnostic tool, or the user find that the diagnostic cable is not long enough during maintenance. It can be extended by 4.5ft. Power The Car When Replac Battery: The auxiliary power supply aims at supplying power to the vehicle through GT100+ OBDII Breakout Box before replacing the battery to sustain the power supply to the vehicle. GT100+ OBDII Breakout Box Upgrade Interface Protocol GT100+ OBDII Breakout Box Pin 1, 9, 3, 11 12, 13, 8 like the picture: these non-standard obd2 protocol interface may display CAN BUS or K-Line communication protocol. GT100 OBDII Breakout Box can only display K- Line Pwm Vpw+ KWP 2000 protocol. GT100+ OBDII Breakout Box will display both CAN BUS, K-Line, Pwm, Vpw+, KWP 2000 protocol communication. GT100+ OBDII Breakout Box Upgrade Interface Protocol GT100+ OBDII Breakout Box Pin 1, 9, 3, 11 12, 13, 8 like the picture: these non-standard obd2 protocol interface may display CAN BUS or K-Line communication protocol. GT100 OBDII Breakout Box can only display K- Line Pwm Vpw+ KWP 2000 protocol. GT100+ OBDII Breakout Box will display both CAN BUS, K-Line, Pwm, Vpw+, KWP 2000 protocol communication. Godiag GT100+ OBDII Breakout Box Function Display Voltage And Current Value Display Function GT100 + OBDII breakout box not only provide power to ECU,but also directly display electronic current value. There is no current display or the actual displayed current is inconsistent with the engineer's expected current, then you can immediately check whether the wiring is wrong or the ECU is broken. Check The Communication Signals Before connecting to your expensive scan tools, you can use GT100+ OBDII Breakout Box to verify the networks are communicating properly, or there is proper power and grounds being supplier to the box assembly. In case if you do not have the proper power or grounds may burn your expensive scan tools. Activate IMMO or Dashboard Module For VW, Porsche or MIT or Toyota all key lost, you can use GT100+ OBDII Breakout Box to activate dashboard or immo module before you use other tools like Autel IM608 to do all key lost.Toyota replaces the engine ECU or some key matching equipment to match the Toyota car with all lost keys Short-circuit PIN13—PIN4,like the picture. Godiag GT100+ OBDII Breakout Box Advanced Function Power Car When Replacing Battery The auxiliary power supply aims at supplying power to the vehicle through GT100+ OBDII Breakout Box before replacing the battery to sustain the power supply to the vehicle.To avoid malfunction or loss of anti-theft remote control data when removing the battery Full package of Accessories Compared with other breakout box, Godiag GT100+ has come with full package of accessories like DB25 jumpe cable, 24pcs wire cable, 6pcs Banana plug which can simplify your work DB25 Color Jumper Cable DB25 color jumper cable as the ECU dedicated connection line. You can use it to diagnose or program to diagnose which is convenient for the professional engineers to detect and maintain Godiag GT100+ OBDII Breakout Box Parameter Diagnostic port OBDII Working voltage DC 9V-24V Work and power 0.5-0.6W Adapter power Input AC100v-240v, Output DC12V 1A Operating temperature ran -20 to 70 °C ( -4 to 158 °F ) Storage temperature range -40 to 85 °C ( -40 to 185 °F ) Dimension L: 9 inches , W:7.08 inches , H:5.75inches
