6-Inch Heavy Duty Truck Hitch Vise - 1705A Bench Vise Mount for 2" Trailer Receiver - Perfect for Auto Repair, Metalworking & DIY Projects
Free shipping on all orders over $50
7-15 days international
22 people viewing this product right now!
30-day free returns
Secure checkout
28449486
Description
Previous page Next page 1 DIMENSIONS 2 Clamping Force Outstanding Hitch Vise Mounted on the workbench or truck tailor for general industrail application. 60,000PSI tensil strength. ductile iron body, powder coated. Enhanced Grip Deeper Throat Depth and replaceable jaws and permenant pipe jaws are grooved for enhanced grip. Pipe capacity ø 1/2" - 3 1/2". Forward Bench Vise 1705A-6 In Add to Cart DT08125A-5In Add to Cart CR80A-8 In Buying Options 30505-5 In Add to Cart 0806-6 In Add to Cart 1306-6In Add to Cart Customer Reviews 4.6 out of 5 stars 98 4.7 out of 5 stars 2,194 4.7 out of 5 stars 1,424 4.7 out of 5 stars 1,048 4.7 out of 5 stars 348 4.7 out of 5 stars 165 Price $125.99$125.99 $129.99$129.99 — $95.99$95.99 $77.99$77.99 $79.99$79.99 Construction Ductile Iron(SG Iron) Ductile Iron Ductile Iron Ductile Iron Cast Iron Ductile Iron Jaw Width 6'' 5'' 8'' 5'' 6'' 6'' Jaw Opening 5 1/2" 5'' 9" 5'' 5'' 6'' Throat Depth 5" 2 5/8'' 4.1'' 2 3/4" 2.7'' 2 13/16" Pipe Jaw φ 1/2" - 3 1/2" φ 3/5" -2 1/2" φ 1/2"- 3 1/2" φ 3/4" - 2" — — Anvil Size 6" X 2.8" 3.2" X 2.6" 4" X 3.5" 2.9" X 2.4" 3.5" X 3.5" 2" X 2" Swivel Base — 360 degrees 190 degrees 360 degrees 120 degrees 120 degrees Mounting Holes 9/16-inch Diameter (x2) φ 9/16-inch (x4) 5/8-inch Diameter (x4) 1/2-inch Diameter (x3) 1/2-inch Diameter (x3) 1/2-inch Diameter (x3) Weight 30.3 lbs 33 lbs 36.5 lbs 26.4 lbs 29.7 lbs 22.7 lbs
Features
Jaw width 6"(150mm); Jaw Opening 5.5"(140mm); Throat Depth 5"(127mm)

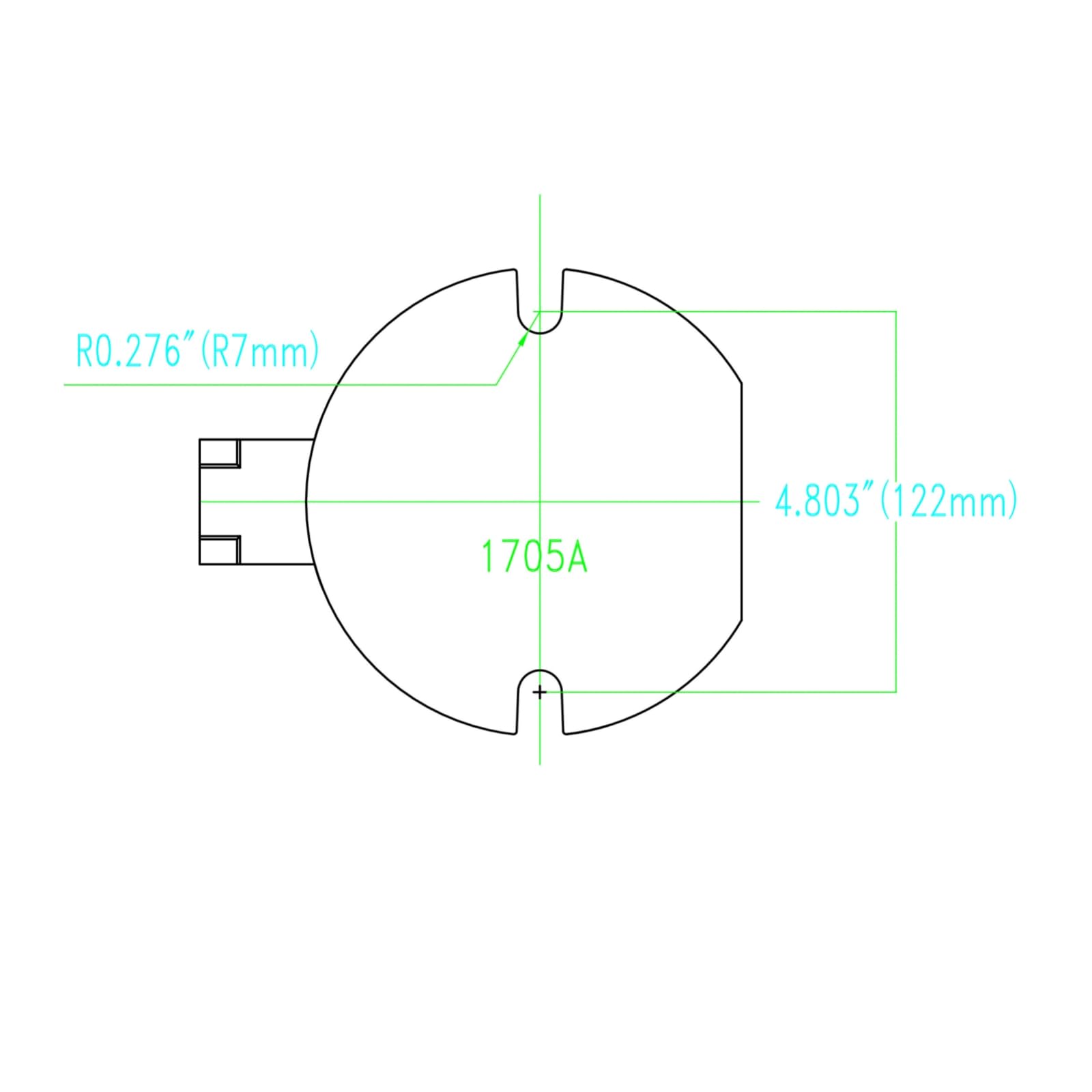

Pipe Capacity diameter 1/2" - 3 1/2"; Anvil Size 150X70mm(6"X2.8"); Mounting Holes 2 x Dia 14mm(0.55")
Mounted on the workbench or truck tailor for general applications. Required 2" Standard Hitch Receiver(Hitch Vise); There are 2 base holes on the vise, Please kindly use 2 SETS of M12 BOLTs & WASHERS for workbench mounting. The hitch pin and clip are for truck receiver mounting
Made from durable ductile iron(SG Iron). Tensile Strength 60000PSI. Clamping Force 2500kg(5500lbs) hitch mounted/3500kg(7700lbs) bench mounted

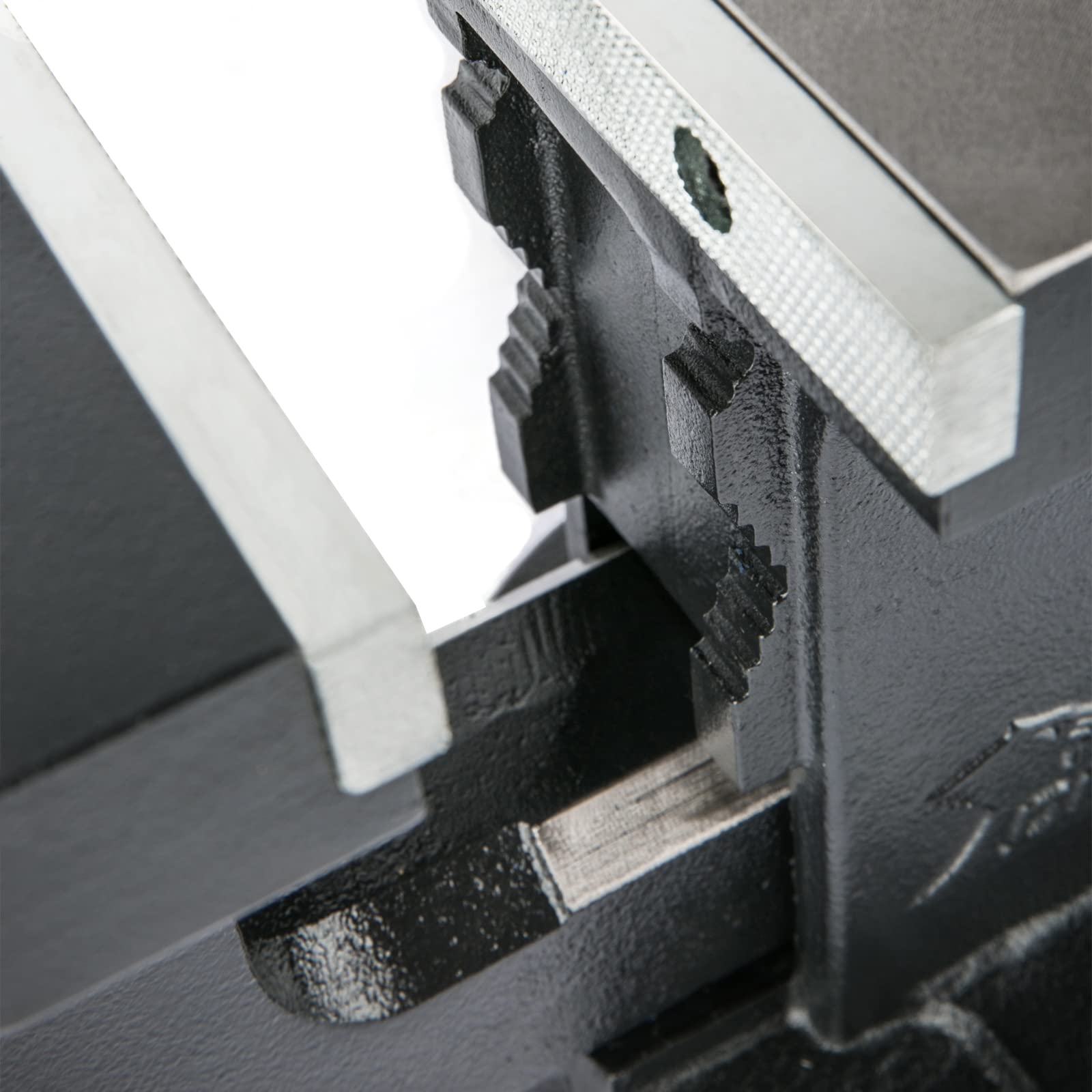

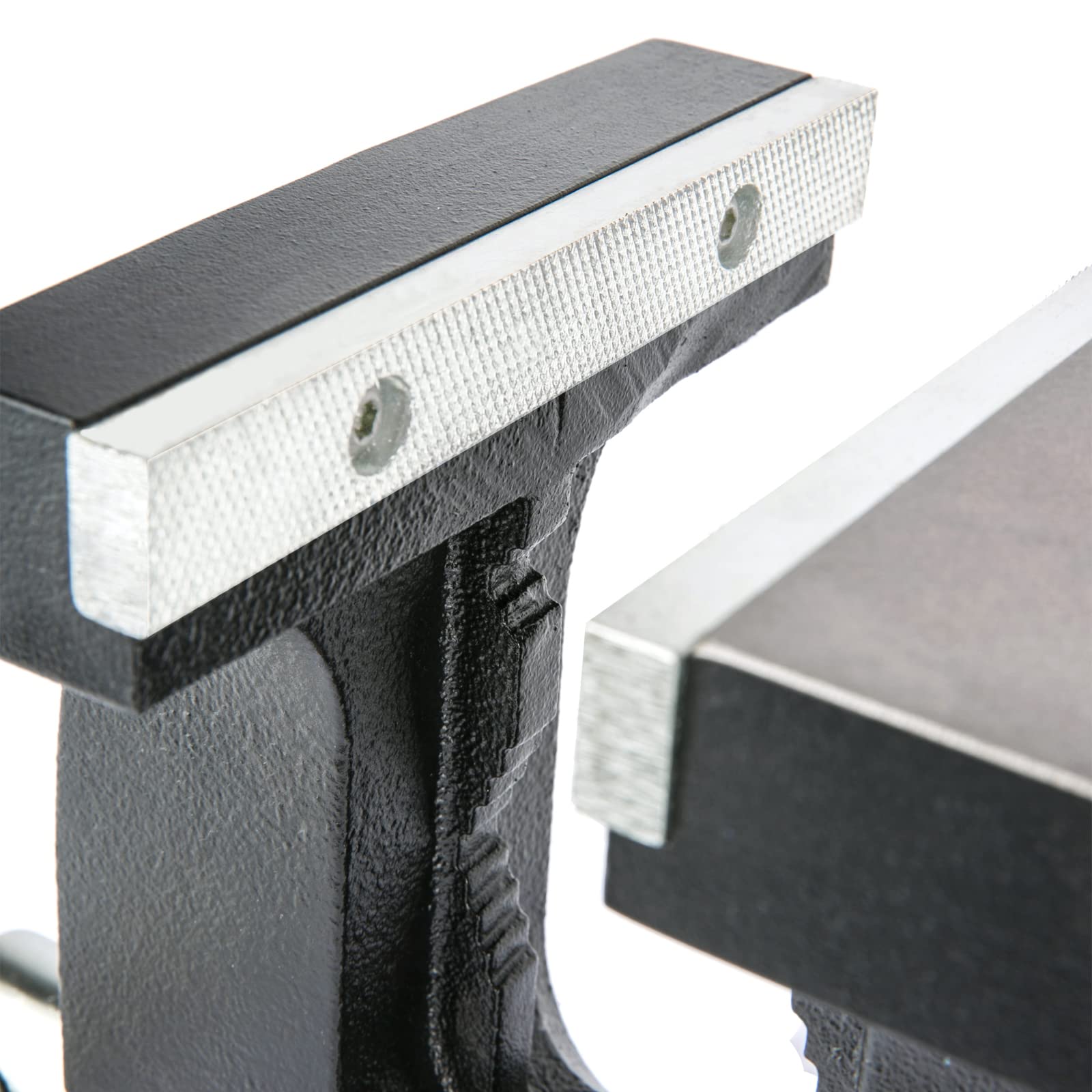

Replaceable jaws and permanent pipe jaws are grooved for enhanced grip. Precision machined Main Screw for smooth operation
